SINGLE WALL FITTINGS
Tees

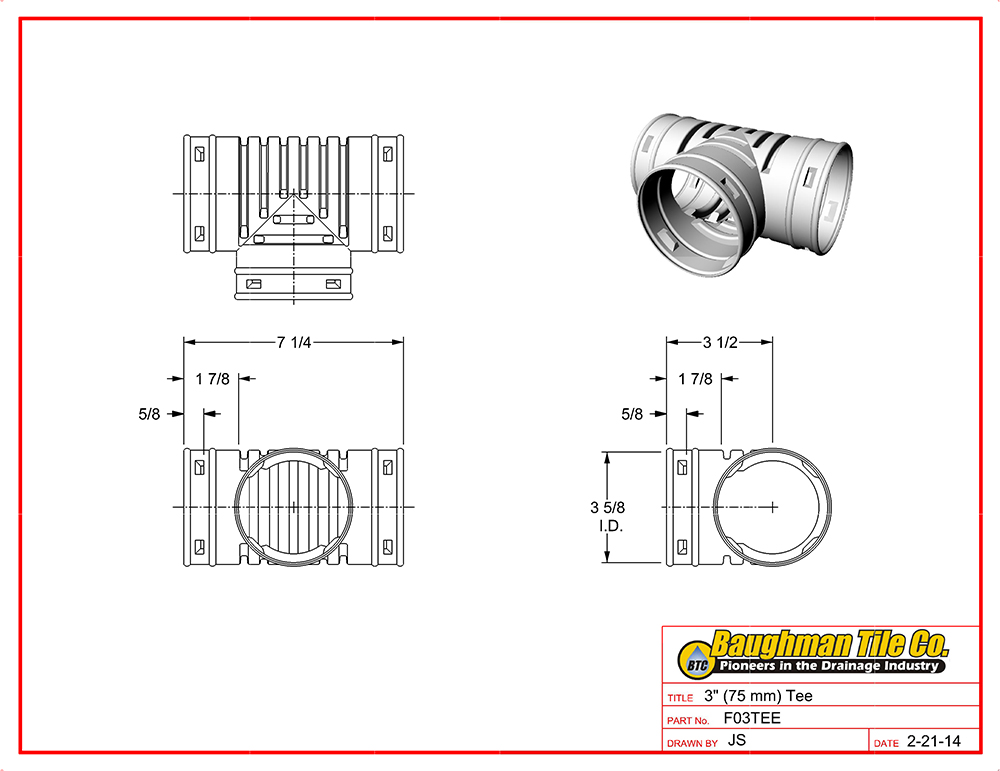

3" (75 mm) Tee

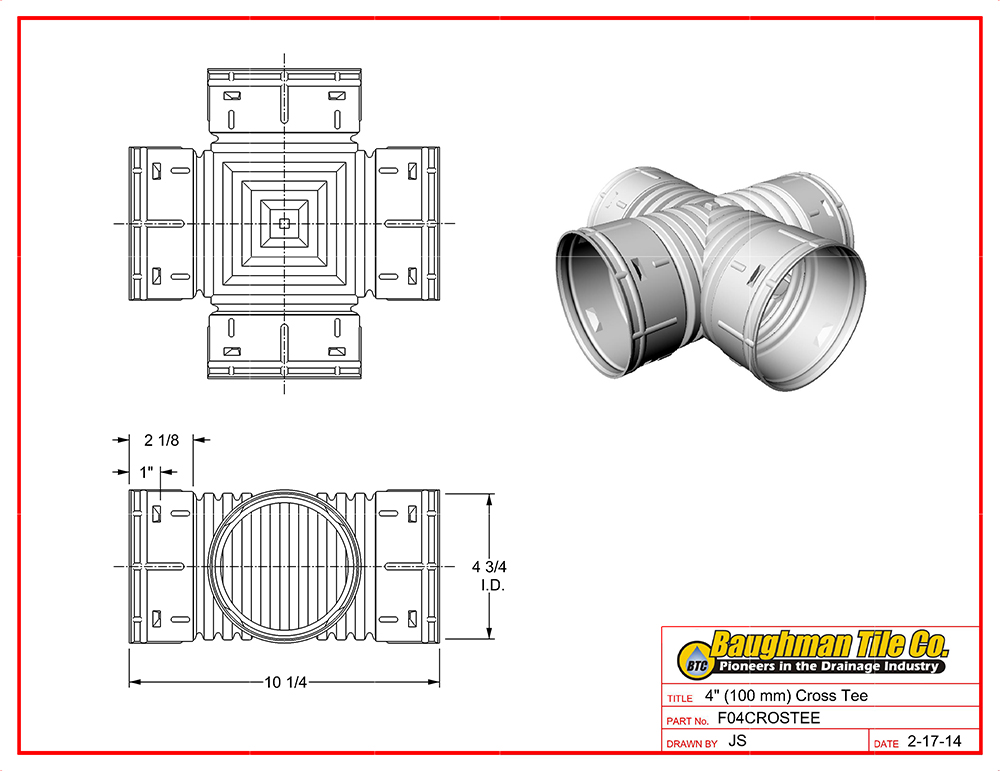

4" (100 mm) Cross Tee

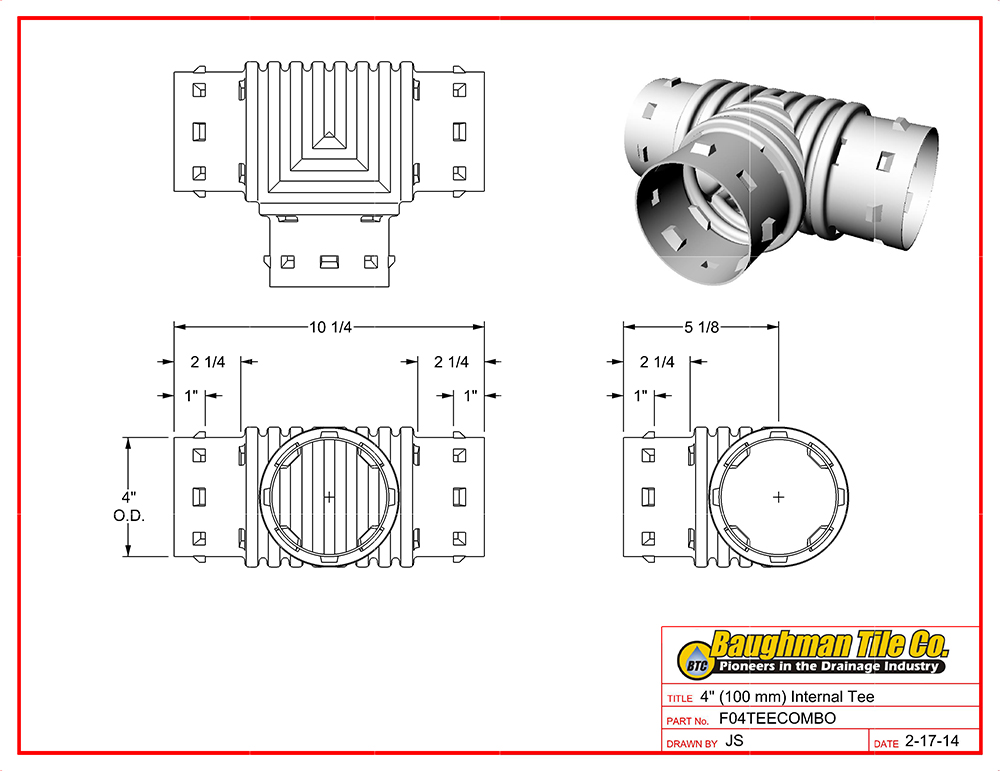

4" (100 mm) Internal Combo Tee

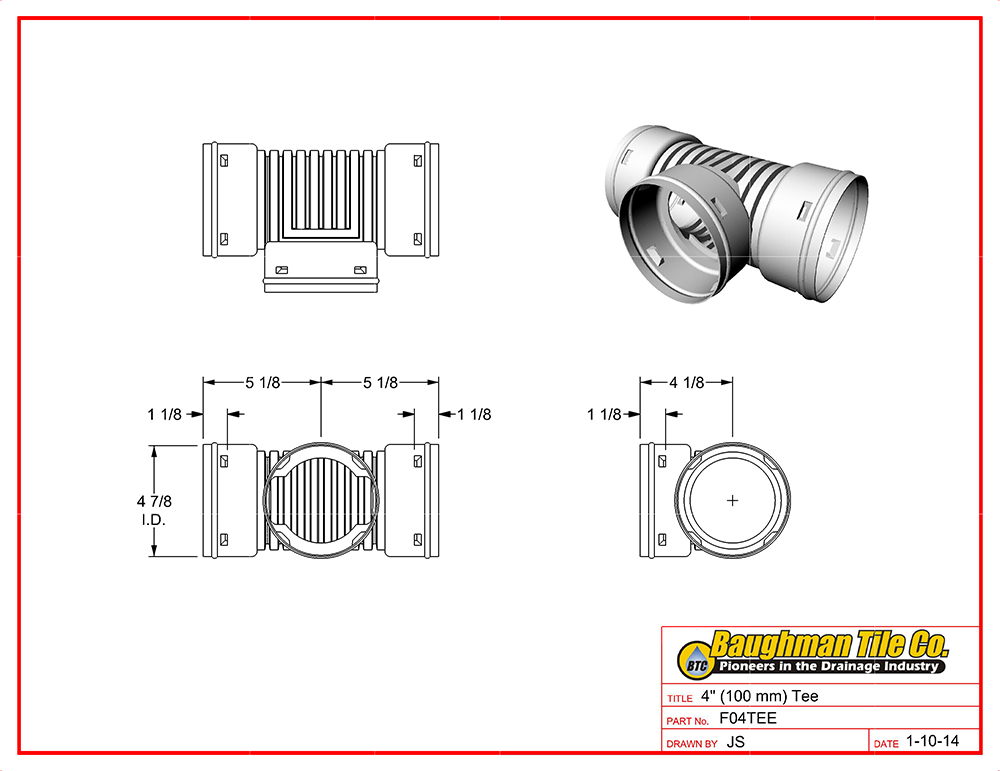

4" (100 mm) Tee

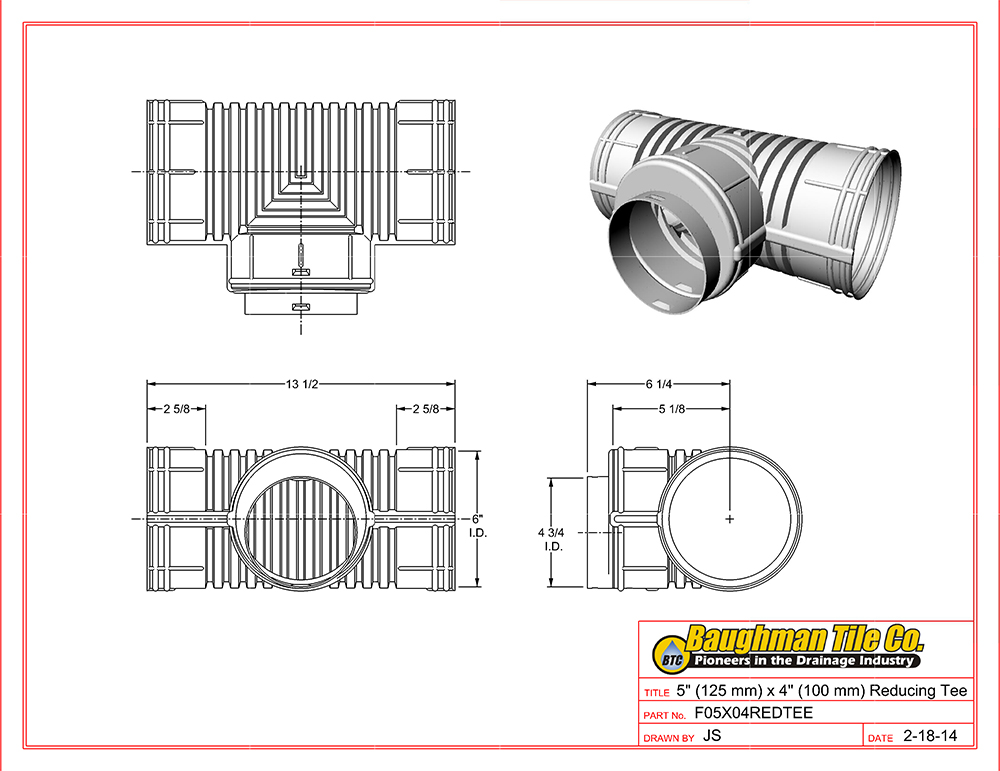

5" (125 mm) x 4" (100 mm) Reducing Tee

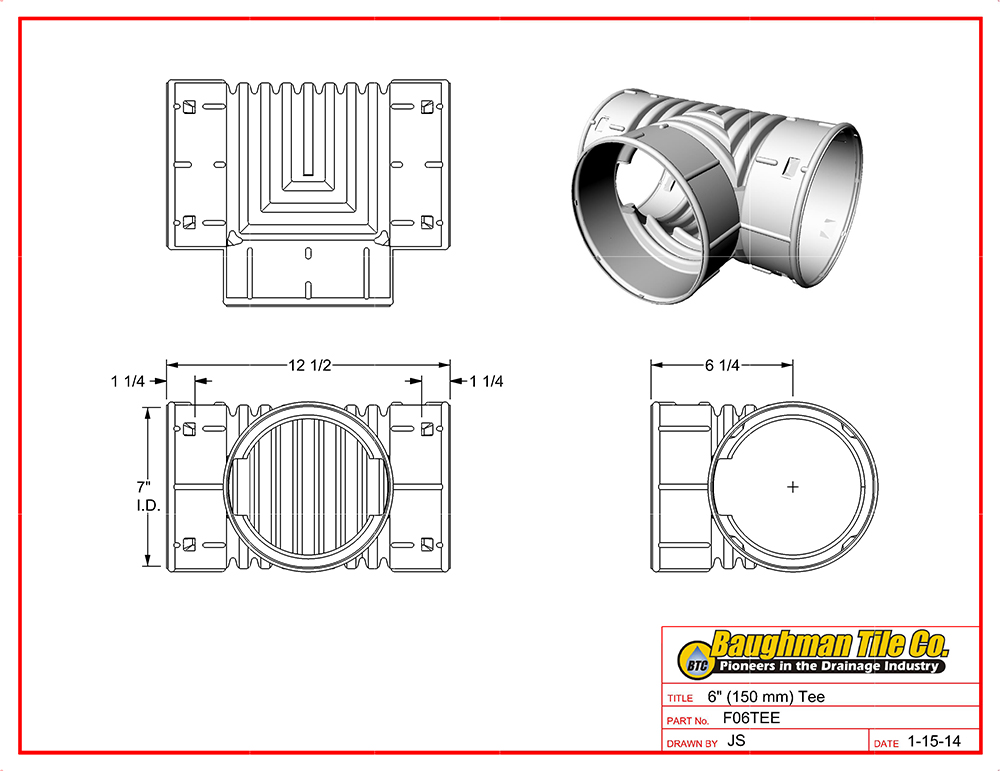

6" (150 mm) Tee

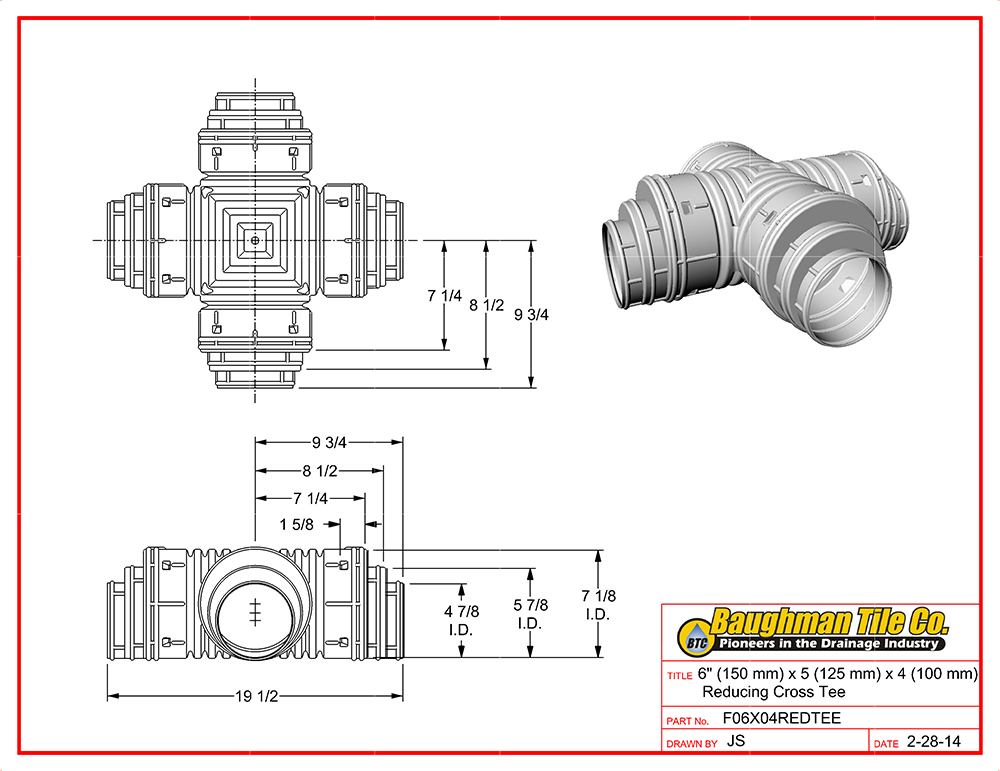

6" (150 mm) x 5 (125 mm) x 4 (100 mm) Reducing Cross Tee

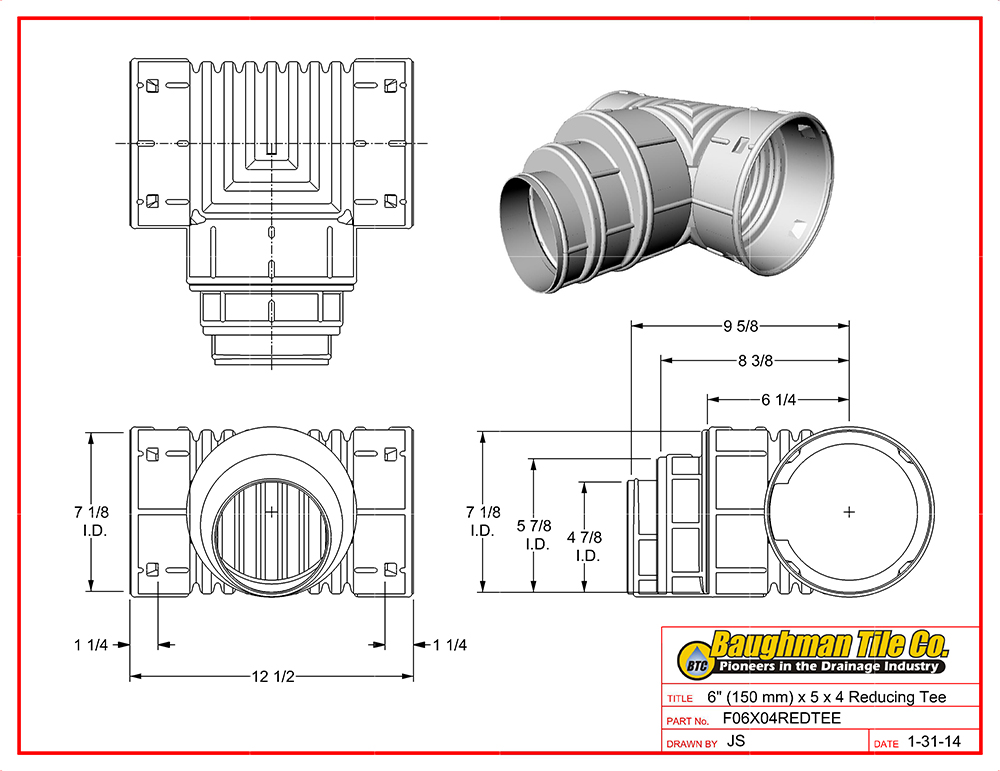

6" (150 mm) x 5 x 4 Reducing Tee

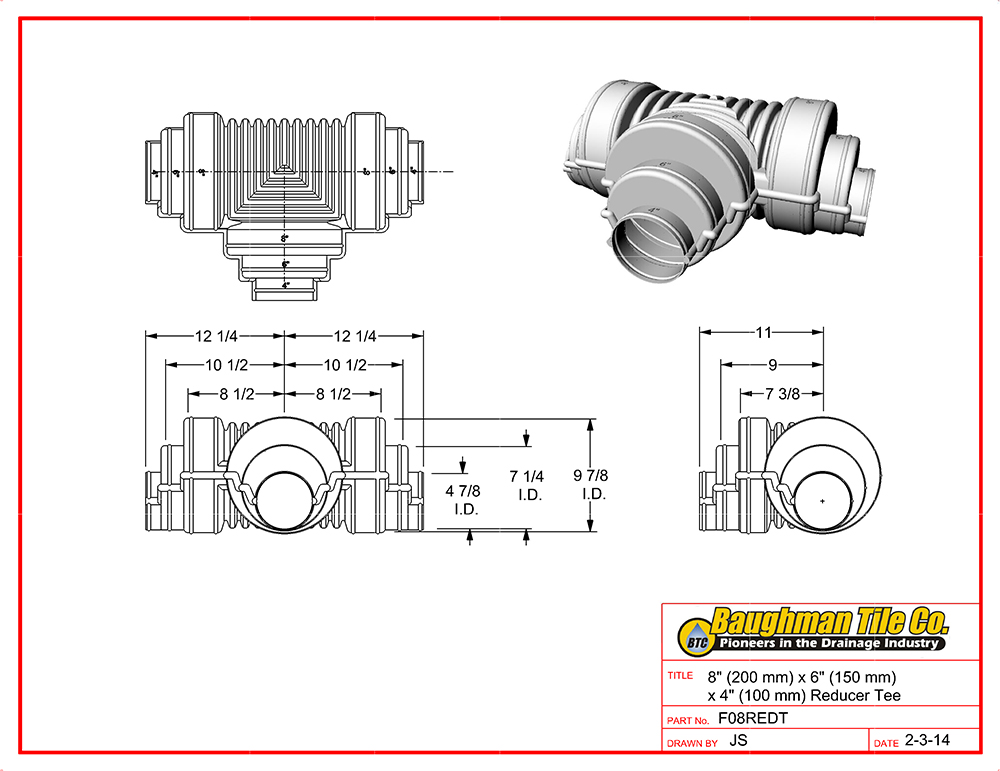

8" (200 mm) x 6" (150 mm) x 4" (100 mm) Reducer Tee

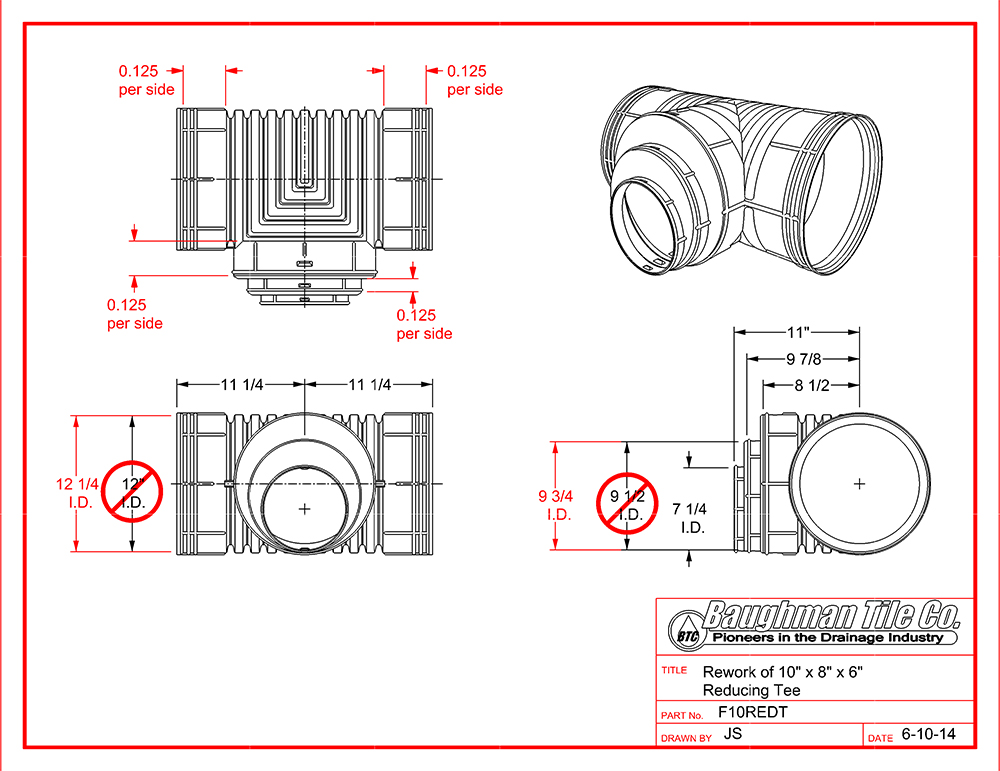

Rework of 10" x 8" x 6" Reducing Tee

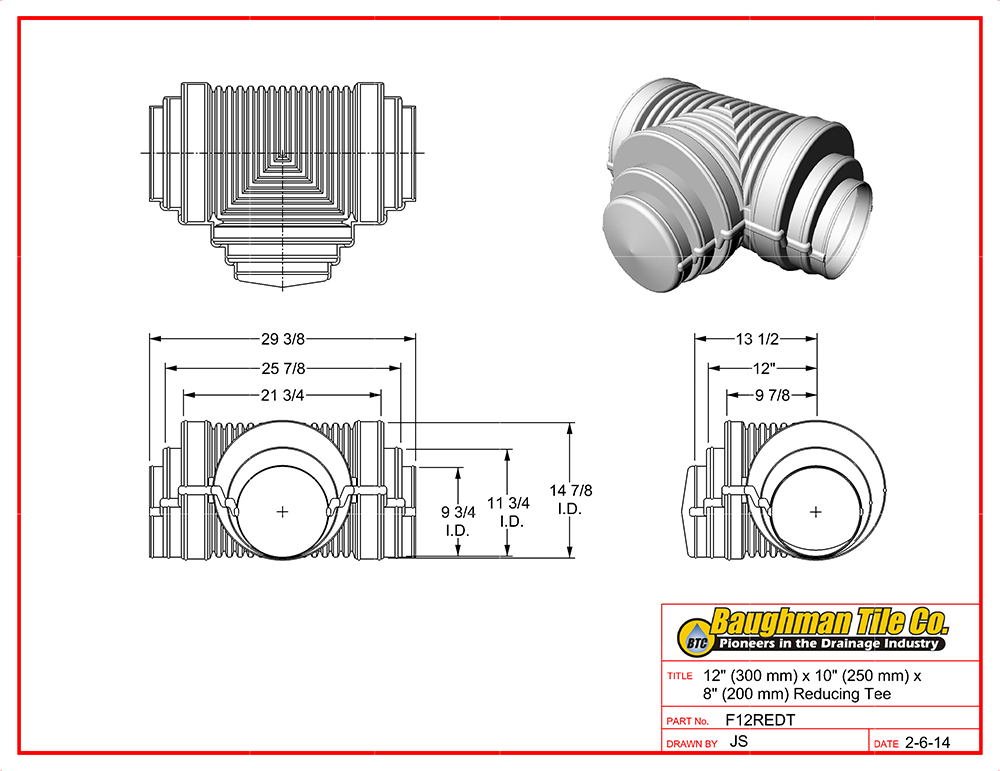

12" (300 mm) x 10" (250 mm) x 8" (200 mm) Reducing Tee

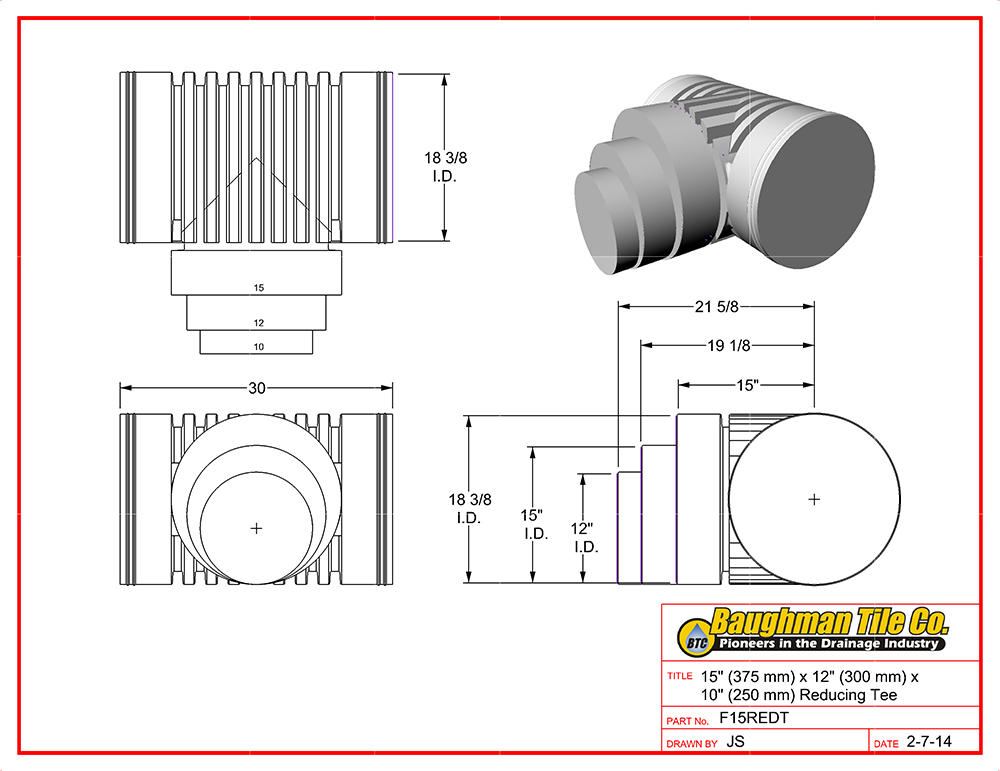

15" (375 mm) x 12" (300 mm) x 10" (250 mm) Reducing Tee
